“FEBX-101S3” is the receiver for advanced wide band digital satellite broadcasting (ISDB-S3*1). This can receive and demodulate 4K/8K broadcast signals in ISDB-S3 system, and output MMT (MPEG Media Transport)/ TLV (Type Length Value) stream.
We have developed the demodulator LSI “SC1501A” that is compatible both with ISDB-S3 and ITU-T J.183*2. By using this LSI, it has realized the minimization of apparatus.
*1:ARIB STD-B44: Standard of transmission system for advanced wide band digital satellite broadcasting.
*2:ITU-T J.183: Retransmission of satellite signals through cable television systems by transmodulation.
*2:ITU-T J.183: Retransmission of satellite signals through cable television systems by transmodulation.
Features
| Both direct signal from the satellites (ISDB-S3) and retransmission signal through the CATV system (IF pass-through) can be received. |
| Output MMT/TLV stream from the RJ-45 connector (Selectable from TLV format and IP format). |
| Easy to check the reception setting and reception state on a personal computer by the included GUI application (Option: Wireless control using a tablet). |

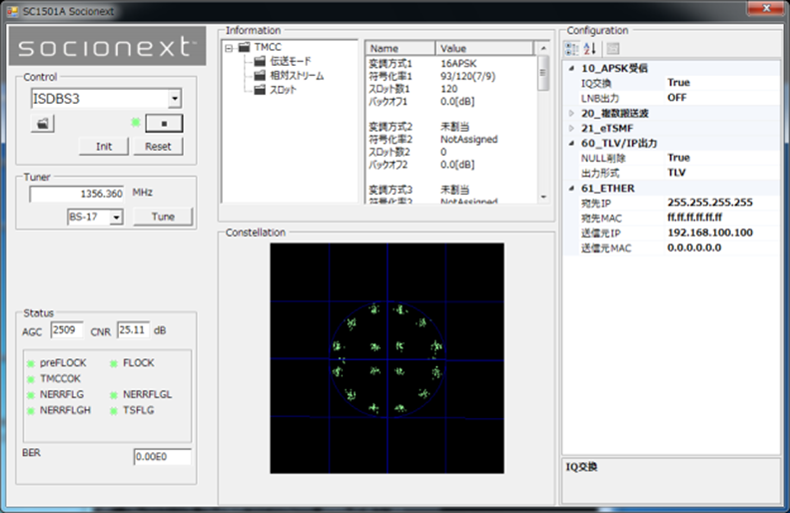

GUI Application

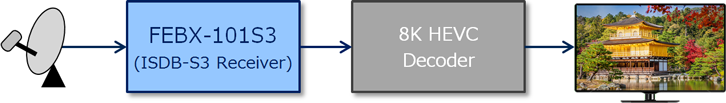

Example of connection (Direct reception from broadcast satellite)）
Specifications
| Items | Descriptions | |
|---|---|---|
| Input Frequency |
1.03GHz to 3.22GHz | |
| ISDB-S3 Reception |
Modulation: 32APSK/ 16APSK/ 8PSK/ QPSK/ BPSK Symbol rate: 33.7561Mbaud |
|
| I/F | Input | Input for ISDB-S3 x1 (F-type connector, 75Ω) |
| Output | Output for MMT/TLV stream x2 (RJ-45, 1000BASE-T) * One of the two is for monitoring. |
|
| Control | USB2.0 for wireline x1 (B-type) USB2.0 for wireless (Option: Bluetooth) x1(A-type) |
|
| Power Supply |
Input voltage: AC100V Input current: 0.3A(typ.) Frequency : 50/ 60Hz |
|
| Dimensions | 300mm(W) ×237mm(D) ×55mm(H) (Including the projecting parts) | |
| Weight | Approx. 1.5kg | |
