“MB86M30” provides video and audio encoding, decoding, and transcoding with supporting HEVC/H.265, AVC/H.264 and MPEG2 standard. MB86M30 is slave type device controlled by host CPU via PCIe interface.

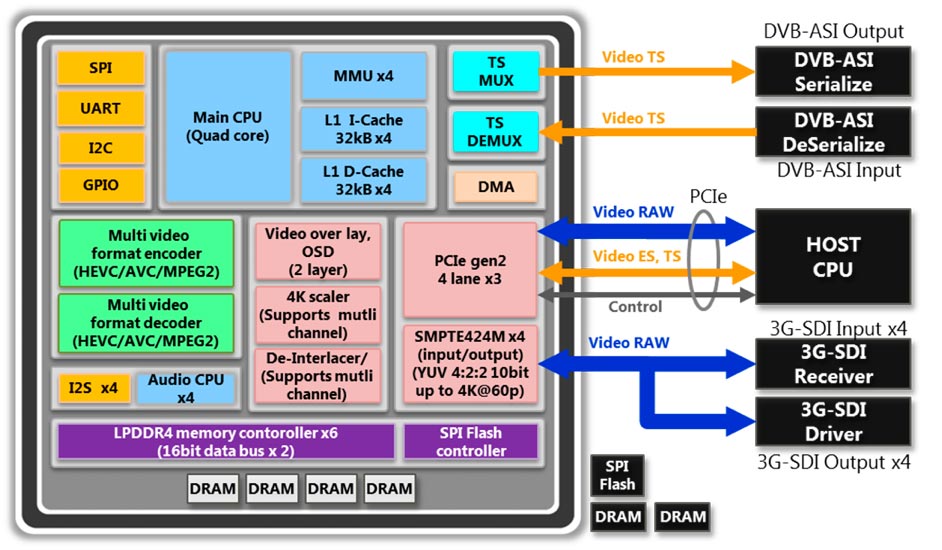

Technical QuestionBlock Diagram
Features
| 4K/60p HEVC/H.265 or AVC/H.264 real-time encoding/decoding |
| 4K/60p HEVC/H.265 encoding with 10ms ultra low latency (Option) |
| HEVC encoding algorithm supporting HDR(High Dynamic Range) Video |
| Low power consumption(6.3W at 4K/60p HEVC encoding) and embedding four DRAMs in package enable high density in the system |
Applications
Broadcasting
IP Video distribution
Medical
Signage
Specifications
| Video | Encoding | HEVC/H.265 4:2:2 10bit (up to 4096 x 2160p60) AVC/H.264 4:2:2 10bit (up to 2160p60) MPEG2 4:2:0 8bit (up to 1080i59.94, 1080p30) |
|---|---|---|
| Ultra Low Latency Encoding *1 | HEVC/H.265 4:2:2 10bit (up to 4096 x 2160p60) Latency : 10ms |
|
| Decoding *2 | HEVC/H.265 4:2:2 10bit (up to 4096 x 2160p60) AVC/H.264 4:2:2 10bit (up to 2160p60) MPEG2 4:2:0 8bit (up to 1080i59.94, 1080p30) |
|
| Transcoding *3 | HEVC to HEVC, H.264 to HEVC, MPEG2 to HEVC, etc. | |
| Pre-Processing | De-Interlacing, Scaling, Filtering, Video overlay | |
| Multiple channel operation | Up to 4ch @HEVC/H.265 encoding, 1080p60 | |
| HDR ready | - | |
| Audio | Encoding | LPCM, AAC-LC, MPEG1-Layer2 |
| Decoding | LPCM, AAC-LC, MPEG1-Layer2 | |
| Pass through | - | |
| Stream processing |
TS MUX | Up to 4ch |
| TS DEMUX | Up to 4ch | |
| Interface | Control | PCIe 2.0 |
| Stream | PCIe 2.0, TS-Serial Input x 4ch, TS-Serial Output x 4ch | |
| Video | PCIe 2.0, Video Parallel Input x 4ch, Video Parallel Output x 4ch | |
| Audio | I2S Input x 4 stereo pair, I2S Output x 4 stereo pair | |
| System | Internal Memory | LPDDR4-2400 8Gbits x 4pcs |
| External Memory | LPDDR4-2400 (16bit x 2ch) x 2pcs | |
| Boot Device | SPI Flash | |

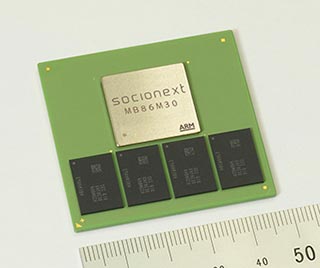

| Package | FCBGA 47.5mm x 47.5mm |
*1: Ultra Low Latency Encoding is optional.
*2: Decode function is verified with the stream generated by MB86M30. Regarding support status of other streams, please contact us.
*3: Transcoding function is optional.
