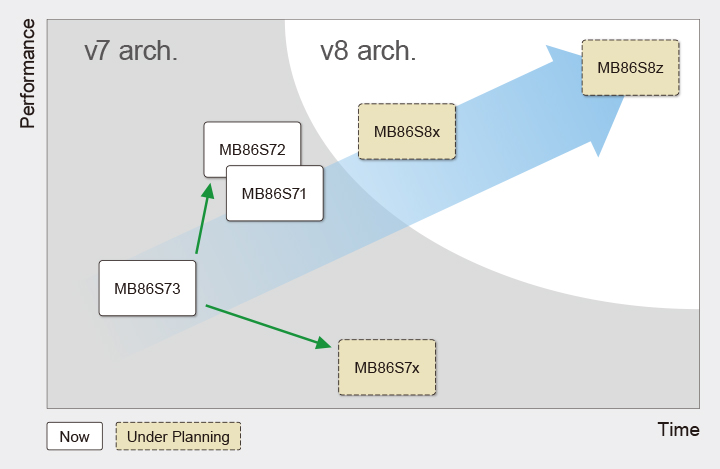

产品路线图
产品规格列表
| Function | MB86S71 | MB86S72 | MB86S73 |
|---|---|---|---|

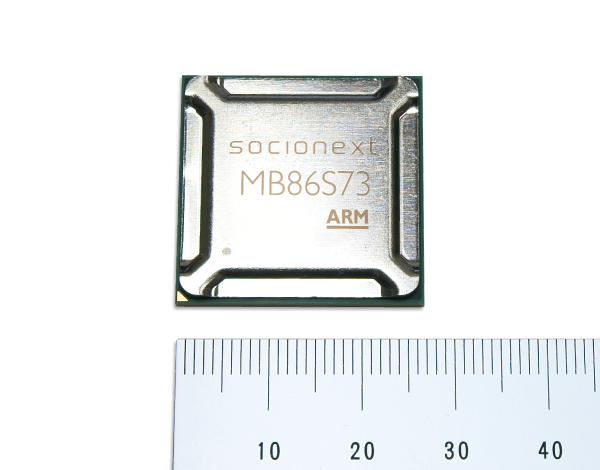

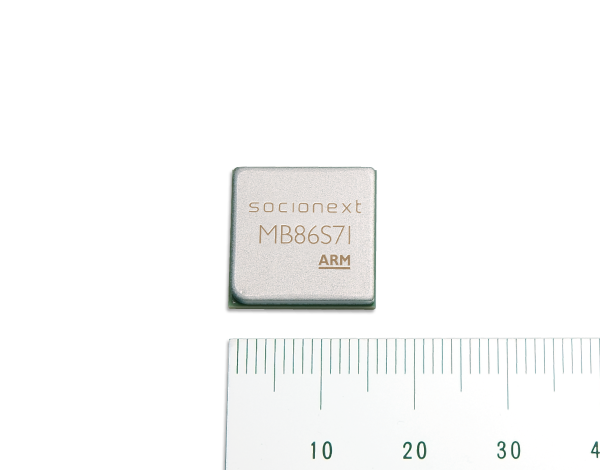

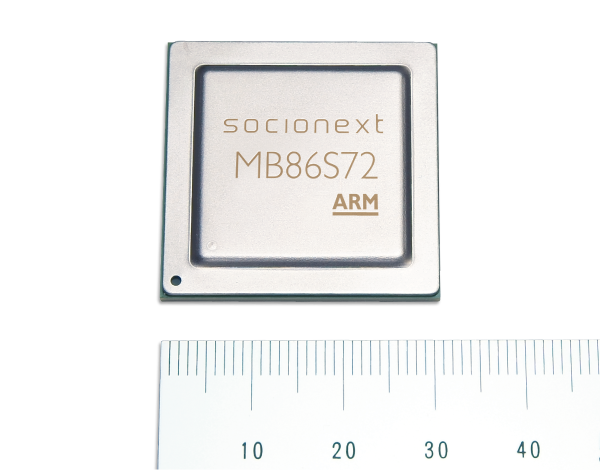

| Package |  |
 |
 |
| CPU core |
Cortex™-A15 2core Up to 1.6GHz 1MB-L2C |
Cortex™-A15 2core Up to 1.6GHz 1MB-L2C |
- |
| Cortex™-A7 2core Up to 1.2GHz 512kB-L2C |
Cortex™-A7 2core Up to 1.2GHz 512kB-L2C |
Cortex™-A7 2core Up to 1.2GHz 512kB-L2C |
|
| 3D/GPGPU | Mail™-T624 1core 400MHz 32kB-L2C |
Mail™-T624 1core 400MHz 32kB-L2C |
Mail™-T624 1core 400MHz 32kB-L2C |
| MEMC | DDR3 1.6GHz, DDR3L 1.333GHz, LPDDR3 1.333GHz, 64bit/32bit |
DDR3 1.6GHz, DDR3L 1.333GHz, 64bit/32bit |
DDR3-1.333GHz, DDR3L-1.066GHz, 64bit/32bit |
| SCB CPU | 125MHz | 125MHz | 125MHz |
| LAN | GbE, WoL TCP Accelaration |
GbE, WoL TCP Accelaration |
GbE, WoL TCP Accelaration |
| FLASH-IF | HSSPI, NOR, eMMC, NAND HSSPI/NOR |
HSSPI, NOR, eMMC, NAND HSSPI/NOR |
HSSPI, NOR, eMMC, NAND HSSPI/NOR |
| SERIAL-IF | UART 3ch, GPIO 16ch, I2C 3ch |
UART 3ch, GPIO 16ch, I2C 5ch |
UART 3ch, GPIO 16ch, I2C 4ch |
| CODEC | 4K-compatible multi-stream video, 32k x 32k JPEG CODEC |
32k x 32k JPEG CODEC | 32k x 32k JPEG CODEC |
| Display | HDMI / MIPI DSI | FPD Link (4lane) | FPD Link (4lane) |
| AUDIO | 2ch I2S | 2ch I2S | 2ch I2S |
| SD | 2ch SDIO | 2ch SDIO | 1ch SDIO |
| PCIe | 1ch PCIe-Gen2-4lane + Data Scrambler |
2ch PCIe-Gen2-4lane + Data Scrambler |
2ch PCIe-Gen2-4Lane + Data Scrambler |
| USB 3.0 | 1ch Host | 2ch Host | 2ch Host |
| USB 2.0 | 1ch Device | 1ch Host, 1ch Host/Device |
1ch Host 1ch Host/Device |

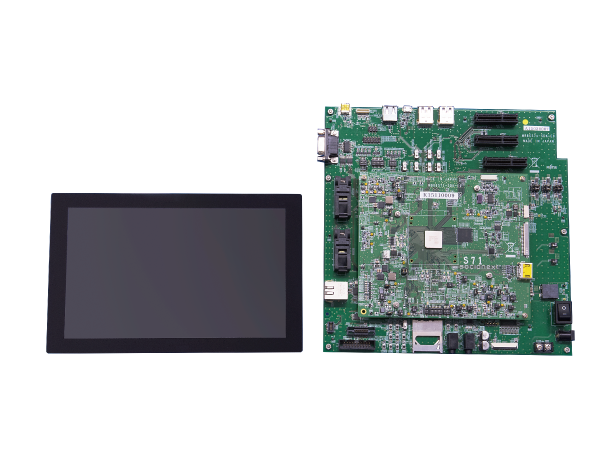

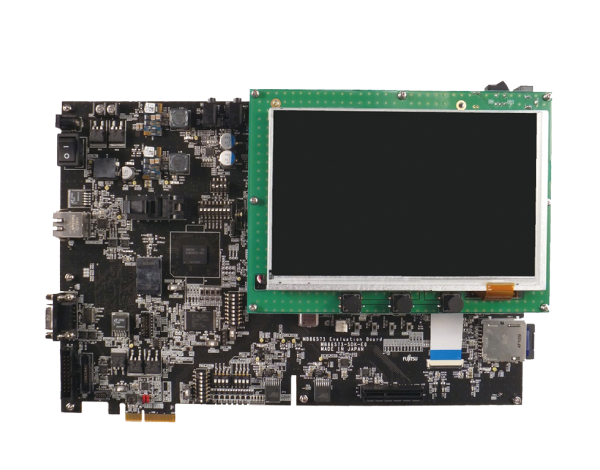

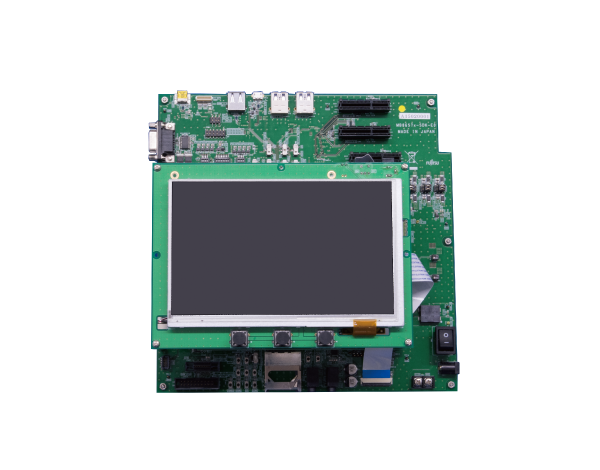

| Development evaluation board |  |
 |
 |
